Graphite Electrodes
Product Overview
-

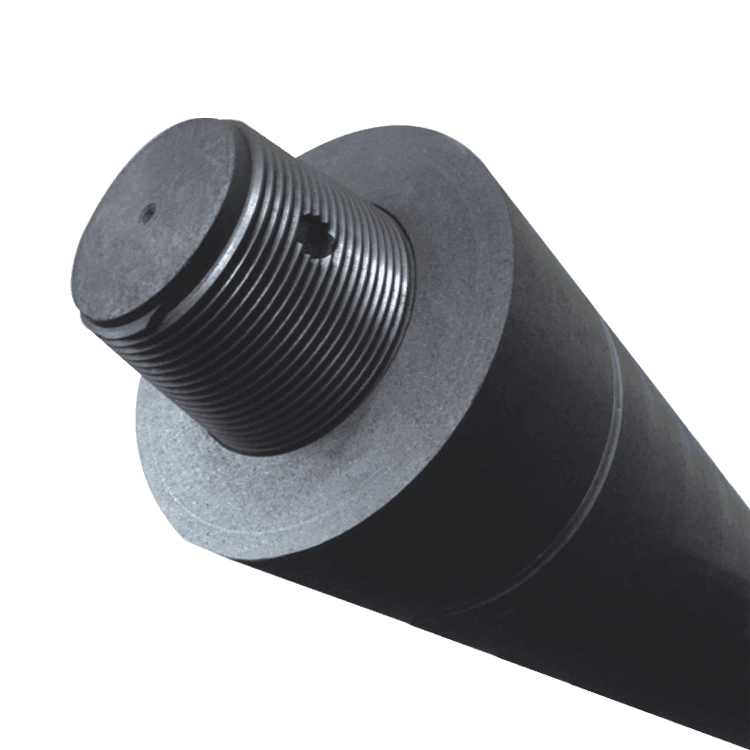

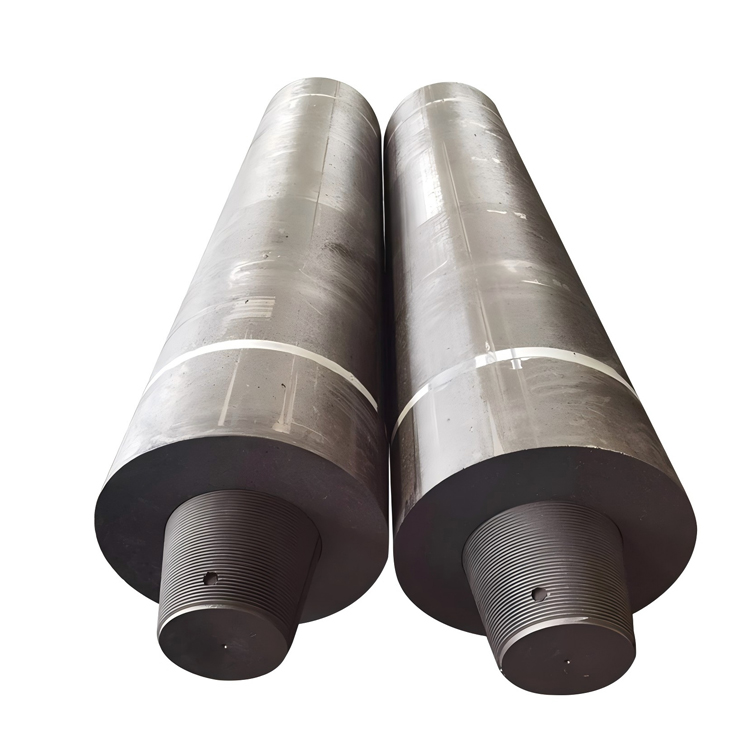

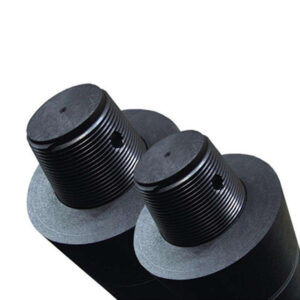

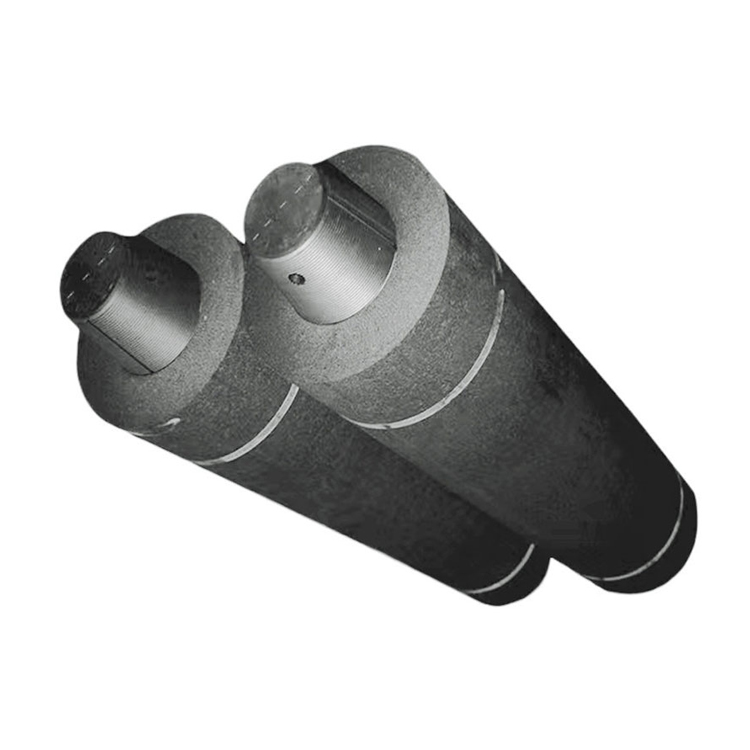

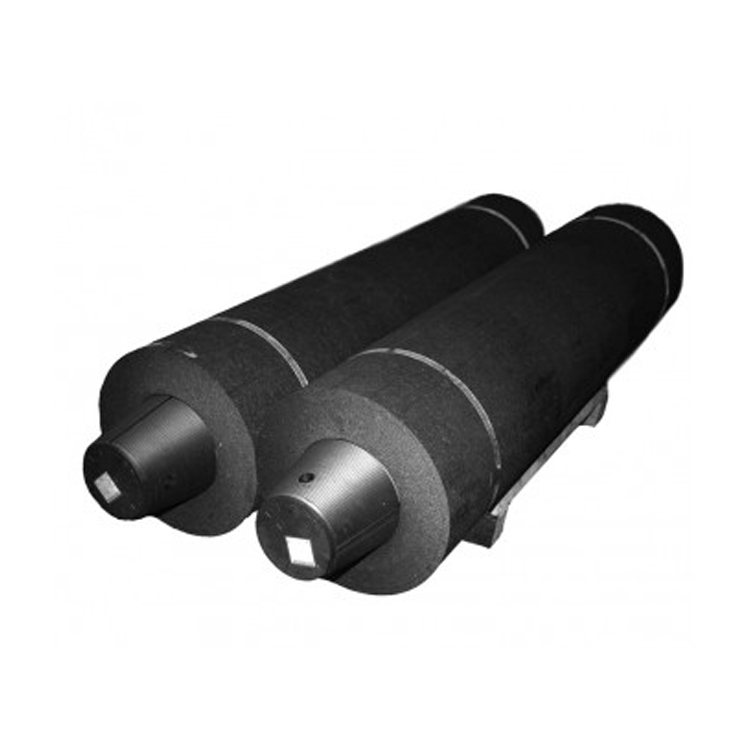

Product Name: RP Grade Graphite Electrode
-
Brand: Rubang Carbon
-
Model Number: RB-RP-1
-
Type: Graphite Electrode
-
Grade: RP (Regular Power) A/B
-
Place of Origin: Hebei, China
-
Color: Black
-
Nipple Thread: 3TPI
-
Raw Material: Needle Petroleum Coke
-
Primary Application: Steel Smelting
-
Length Range: 800 ~ 1500 mm
-
Key Superiority: Low Consumption Rate
Chemical & Physical Properties
Standard Chemical Composition
-
Fixed Carbon: ≥ 99%
-
Volatile Matter: ≤ 0.5%
-
Ash: ≤ 0.5%
General Physical Characteristics
-
Electrical Resistance: 6 – 9 μΩ·m
-
Apparent Density: 1.58 – 1.75 g/cm³
-
Coefficient of Thermal Expansion (100–600℃): 1.5 – 2.5 ×10⁻⁶/℃
-
Flexural Strength: 8 – 12 MPa
-
Elastic Modulus: 8.50 – 15.50 GPa
-
Current Carrying Capacity: 1 – 8 kA
Graded Physical Index (By Diameter)
|
RP Graphite Electrodes-Physical & Chemical Index |
||||||||
|
Description |
Type |
Unit |
Nominal Diameter (mm) |
|||||
|
Ø75 – 200 |
Ø250 – 350 |
Ø400 – 500 |
||||||
|
Excellent |
First |
Excellent |
First |
Excellent |
First |
|||
|
A |
B |
A |
B |
A |
B |
|||
|
Electrical Resistance(≤) |
Electrode |
μΩ.m |
8.0 |
9.0 |
8.0 |
9.0 |
8.0 |
9.0 |
|
Nipple |
7.5 |
7.5 |
7.5 |
|||||
|
Tensile Strength (≥) |
Electrode |
Mpa |
10.0 |
10.0 |
8.0 |
|||
|
Nipple |
15.0 |
15.0 |
15.0 |
|||||
|
Young’s Module (≤) |
Electrode |
Gpa |
12.0 |
12.0 |
12.5 |
|||
|
Nipple |
14.0 |
14.0 |
14.0 |
|||||
|
Bulk Density (≥) |
Electrode |
g/cm3 |
1.58 |
1.58 |
1.58 |
|||
|
Nipple |
1.68 |
1.68 |
1.68 |
|||||
|
CTE (≤) |
Electrode |
X 10-6/℃ |
2.7 |
2.7 |
2.7 |
|||
|
Nipple |
2.5 |
2.5 |
2.5 |
|||||
|
Ash |
– |
% |
0.3 |
0.3 |
0.3 |
|||
| Note: The Ash and Thermal Expansion coefficient are parameter indexes. | ||||||||
Production Process
Made from high-quality, low-ash materials (Petroleum Coke, Needle Coke, Coal Pitch) through a series of processes:
Calcining → Crushing → Screening → Burdening → Kneading → Forming → Baking → Impregnation → Graphitization → Precision CNC Machining.
The final product features low resistivity, excellent conductivity, low ash content, compact structure, good anti-oxidation properties, and high mechanical strength, making it an optimal conductive material for Electric Arc Furnaces and smelting furnaces.
Primary Applications
-
Ladle Furnaces
-
Electric Arc Furnace Steelmaking
-
Yellow Phosphorus Furnaces
-
Industrial Silicon Furnaces or Copper Melting Furnaces
-
Other steel refining and smelting processes
Transportation, Installation & Storage Guidelines
-
Storage: Keep in a clean, dry place. Avoid vibration and collision. Dry before use.
-
Installation Prep: Clean the socket with compressed air before screwing in the nipple. Handle carefully to avoid thread damage.
-
Electrode Connection: Clean both electrode ends with compressed air when they are 20–30 mm apart.
-
Tightening: Use a wrench to tighten completely to the specified position. The gap between two electrodes should be no less than 0.05 mm.
-
Fracture Prevention:
-
Avoid using insulation blocks.
-
Place large charge blocks in the upper part of the furnace.
-
Packaging & Commercial Terms
Packaging
Packed in wooden cases/lathing and secured with metal control strips.
Business Conditions
-
Price & Delivery Terms: FOB, CFR, CIF, EXW, DDP
-
Payment Currency: USD, EUR, JPY, CAD, CNY, AUD
-
Payment Terms: T/T, L/C, D/P, D/A, Western Union, Cash
-
Loading Port: XINGANG or QINGDAO, CHINA
